How can I view the thermal imagery from the BLK360?

Last Updated: September 06, 2019

How can I view the thermal imagery from the BLK360?

Register360

  • Register360 allows you to view the thermal data and query for temperature measurements.
  • Data can be imported directly from the BLK360 into Register360, or imported using the BLK360 Data Manager and later imported into Register360.

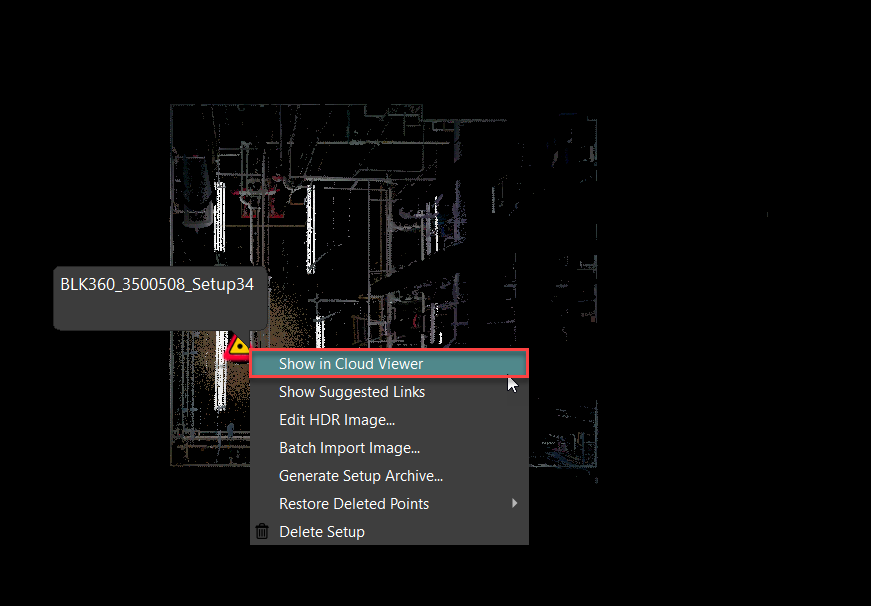

  1. From the Sitemap view, right-click on a setup and choose 'Show in Cloud Viewer.'

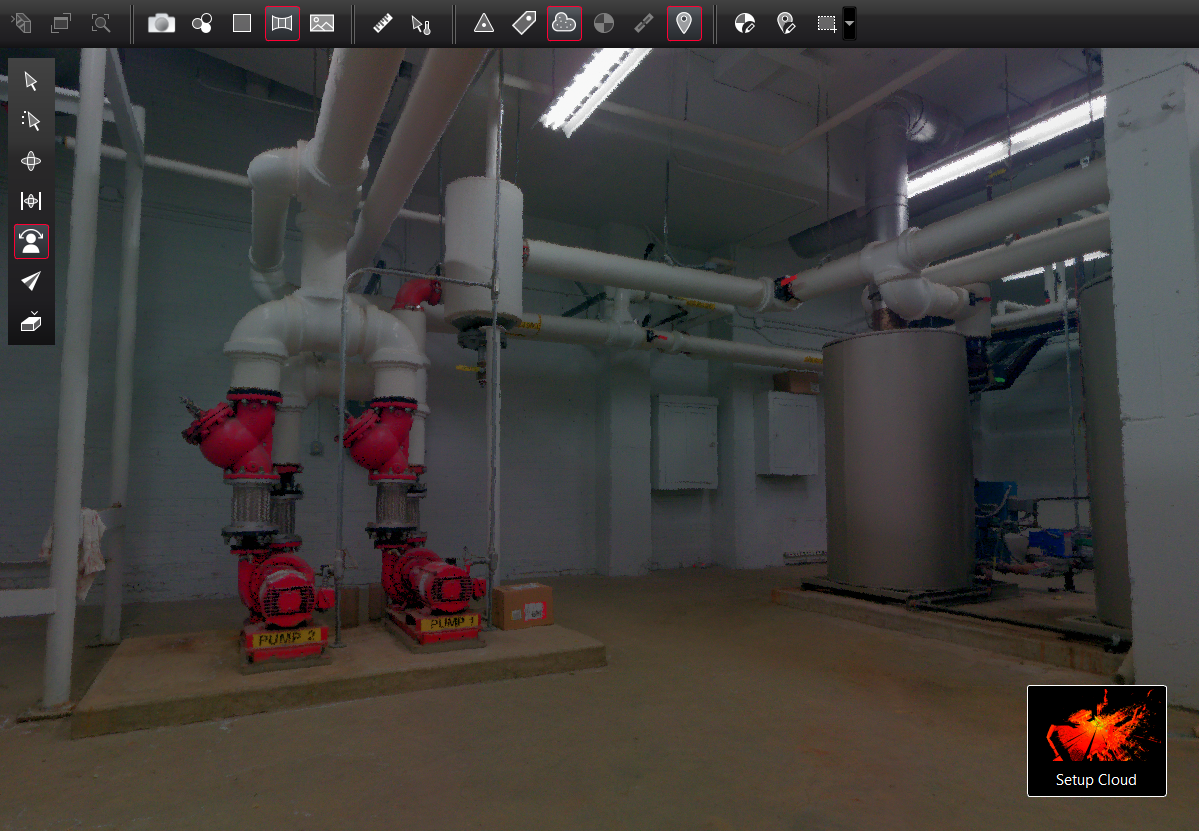

  1. You will now view the scan from the perspective of the scan location.

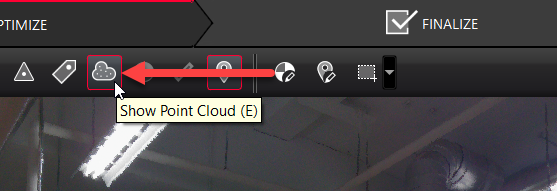

  1. Toggle the point cloud off, by clicking on the cloud icon or using the keyboard shortcut 'E.'

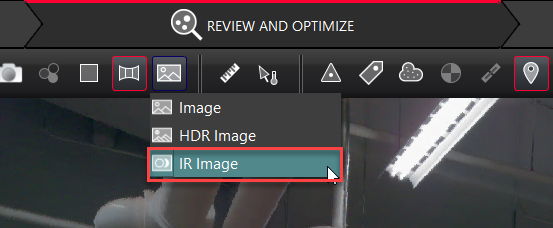

  1. Click on the Image button, and choose 'IR Image.'

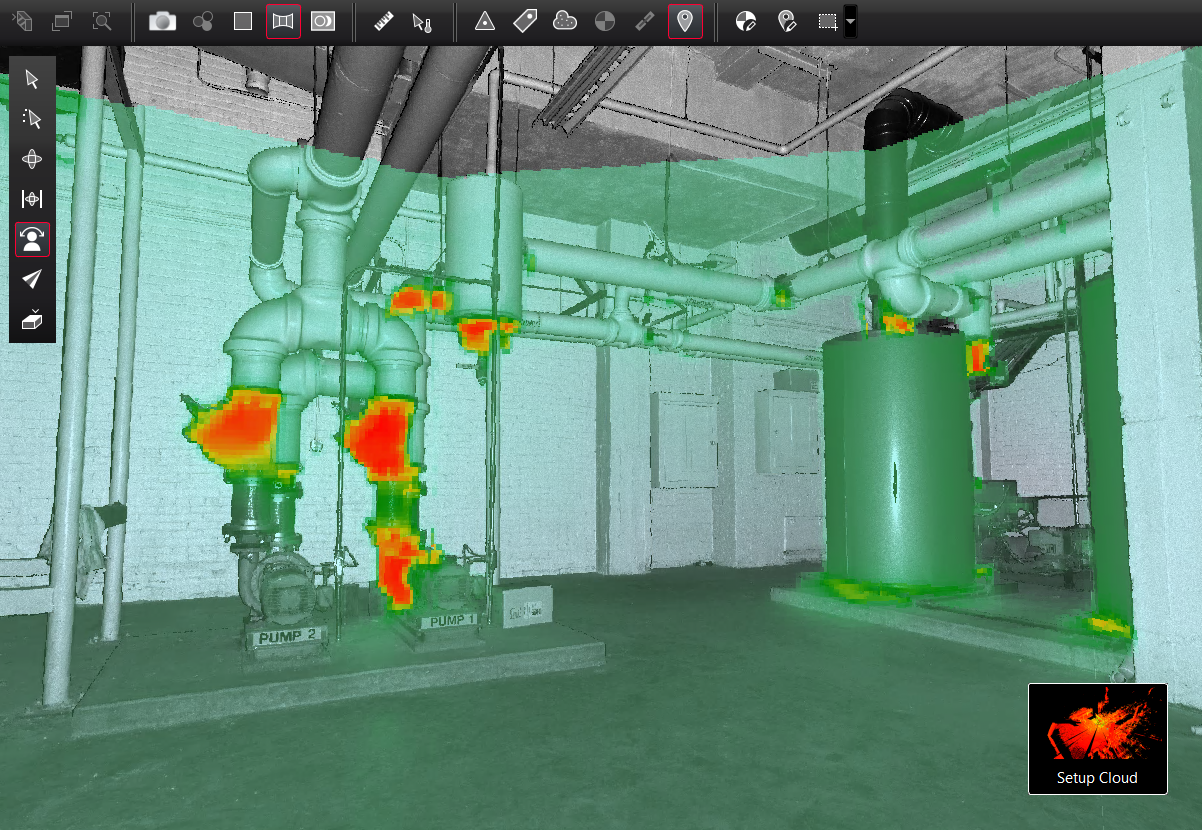

  1. You will now see the thermal image.

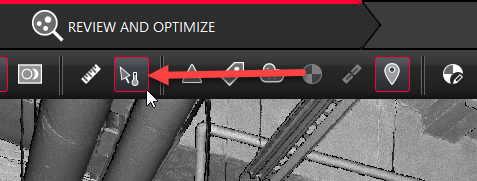

  1. Click on the thermometer icon to take a temperature measurement.

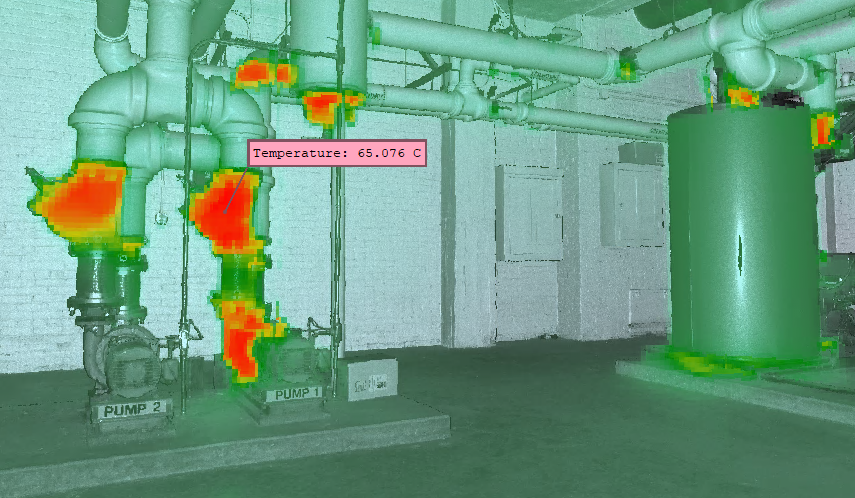

  1. You can now measure the temperature at different locations in the scan.
